Low Ozone Xenon Lamp
Low Ozone Xenon Lamp
Product No??
A high-performance, low-noise xenon light source engineered for demanding spectroscopy applications. This lamp can be used for OEM integration or as a direct replacement bulb for enVISion and enVISTA spectrometers.
Couldn't load pickup availability
OVERVIEW
-
Highlights
- Highly stable intensity output
- Low ozone
- No forced air cooling required
- OEM use or replacement probe source for enVISion and enVISTA
-
Description

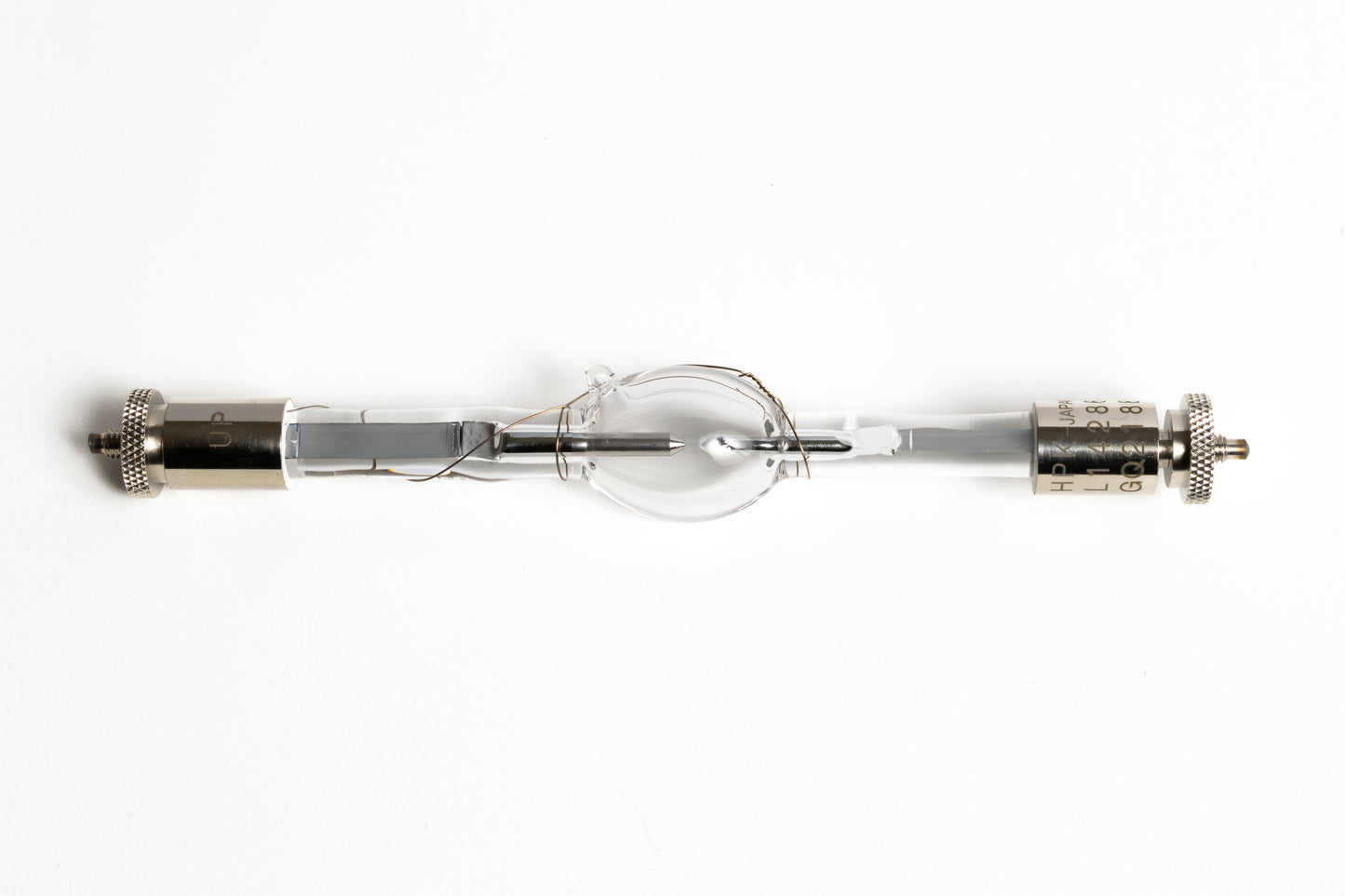

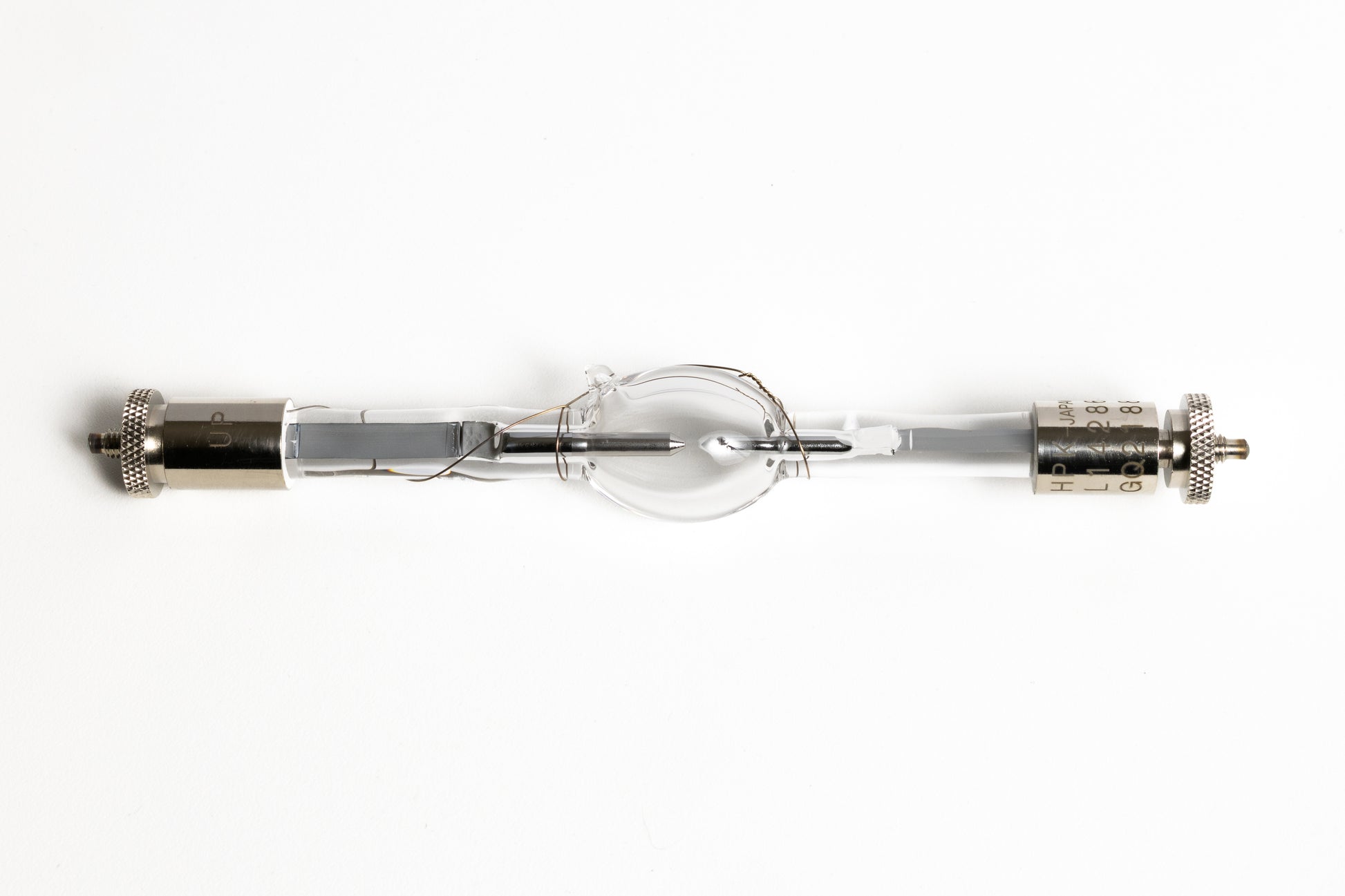

This 150 W xenon arc lamp is a high-performance replacement light source designed for demanding spectroscopy applications and is fully compatible with the enVISion and enVISTA spectrometers. It delivers a powerful, broadband spectrum from 300-2600 nm exceptional output stability, making it ideal for transient absorption and other optical measurements. This lamp utilizes a low ozone fused silica glass for use with non-ventilated applications.
Engineered for precision instrumentation, this lamp provides excellent intensity stability and long-term reliability throughout its operational lifetime. Its stable arc performance ensures consistent data quality and reduced signal drift, supporting accurate and repeatable experiments. For optimal performance, routine replacement is recommended.
SPECIFICATIONS
| External Dimensions: | See CAD drawing |
| Power: | 150W |
| Arc Length: | 2.0 mm |
| Current: | 8.5 ±0.5 A |
| Voltage: | 17 V |
| Trigger Voltage: | 20 kV |
| Window Material: | Low ozone fused silica |
| Light Output Stability: | Drift - 0.5%/hour PTP - 1.0%/hour |
| Orientation: | Vertical ± 15 degrees |
| Guaranteed Life: | 1000 Hours |
| Cooling Method: | Not required |
| Weight: | 44 g |
