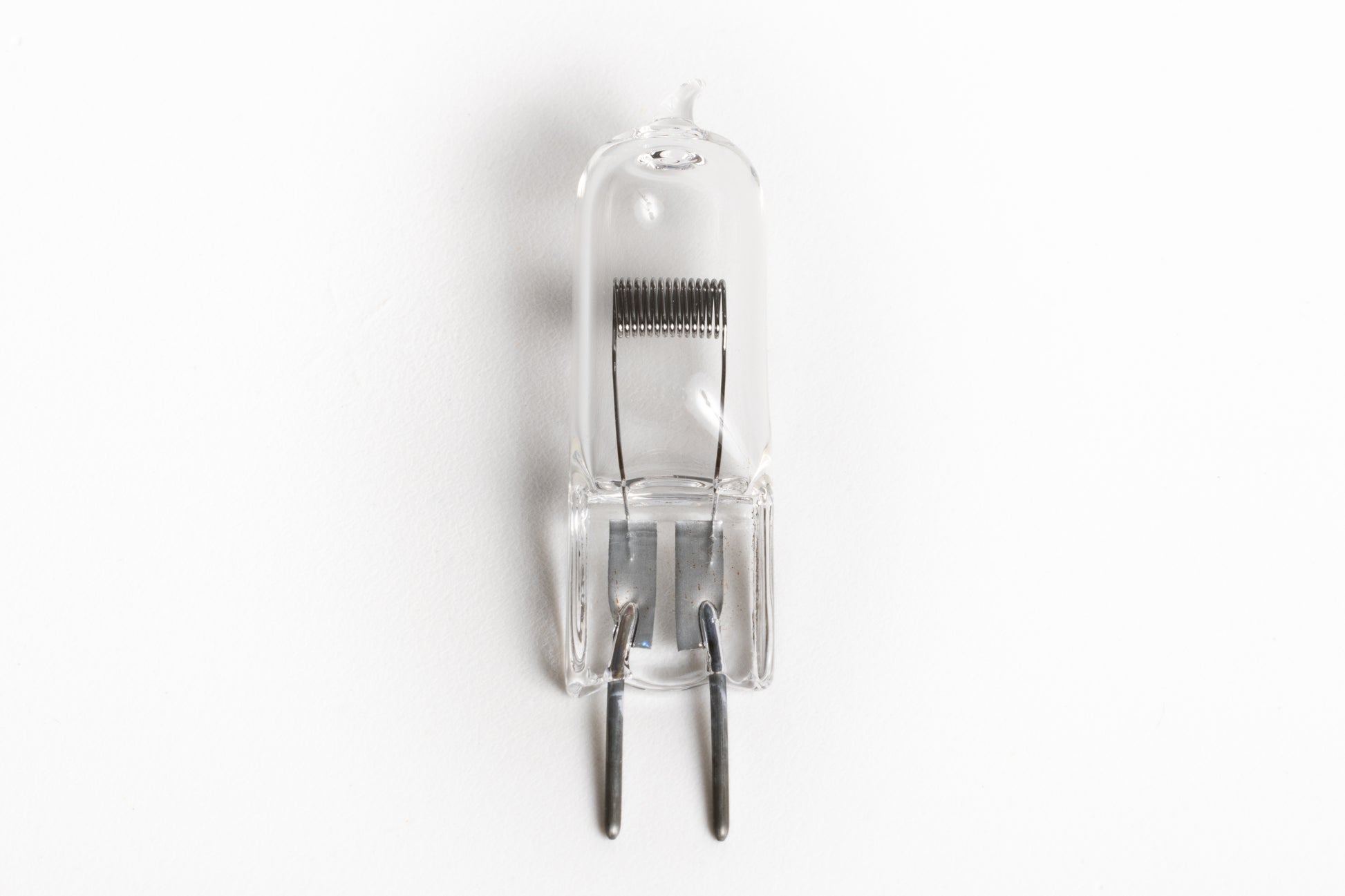

High Intensity Halogen Lamp
High Intensity Halogen Lamp
Product No. 3700001
High-intensity, stable tungsten-halogen lamp designed for reliable broadband illumination in spectroscopy applications. Ideal for OEM integration or as a direct replacement bulb for enVISion spectrometers, delivering reliable output over its entire service life.
Couldn't load pickup availability
OVERVIEW
-
Highlights
- Useable wavelength range of 400-2600 nm for VIS-NIR spectroscopy
- Excellent intensity stability and uniform color temperature
- OEM use or replacement probe source for enVISion
-
Description
This 250 W tungsten halogen lamp is a high-stability light source designed for spectroscopy applications and serves as the recommended replacement / consumable lamp for the enVISion spectrometer. It delivers consistent broadband output from 400-2600 nm for reliable optical measurements and optical experiments.
Engineered for precision instruments, this lamp provides excellent intensity stability and color temperature uniformity across its operating life. With a typical lifespan of approximately 200 hours, it is ideal for maintaining peak instrument performance through routine replacement.
SPECIFICATIONS
| Bulb Type: | Tungsten-halogen |
| Base: | G6.35 2-pin |
| Color Rendering Index (CRI): | 100 |
| Diameter: | 14.0 mm (0.551 in) |
| Lamp Finish: | Clear |
| Max length: | 55.0 mm (2.145 in) |
| Rate Life: | 200 hours |
| Shape: | T12 |
| Voltage: | 24 VDC |
| Wattage: | 250 W |
| Filament dimension: | 4.0 mm (L) x 8.0 mm (W) 0.156 in (L) x 0.312 in (W) |
| Luminous Flux: | 9000 |
| Light Center Length: | 33.0 mm (1.287 in) |
